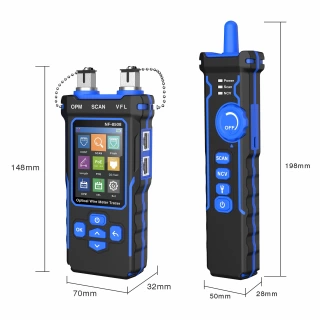

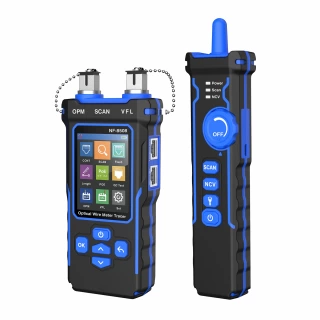

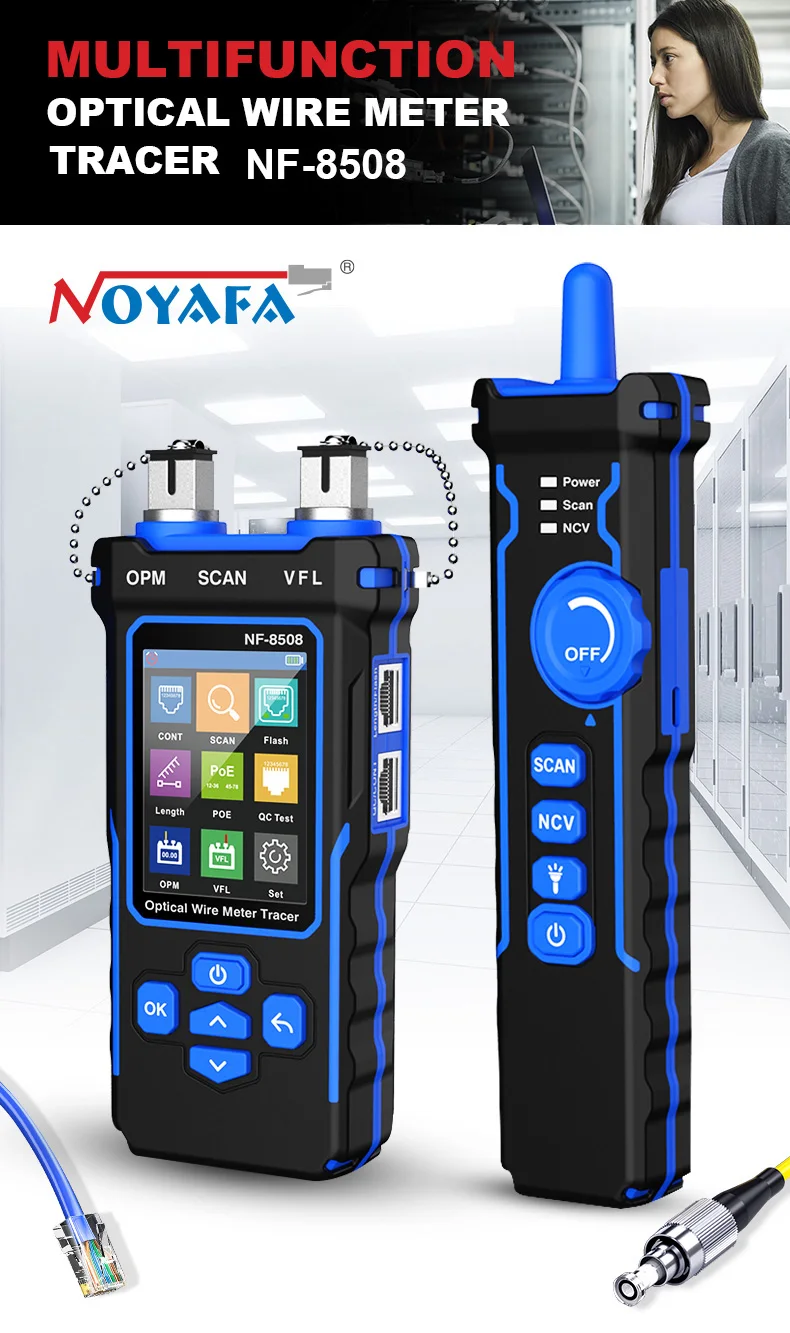

NOYAFA NF8508 Multifunction Network Cable Tester Optical Wire Meter Tracer Fault Locator LAN PoE Checker Network Tools NF-8508
Description
NOYAFA NF8508 Multifunction Network Cable Tester Optical Wire Meter Tracer Fault Locator LAN PoE Checker Network Tools NF-8508

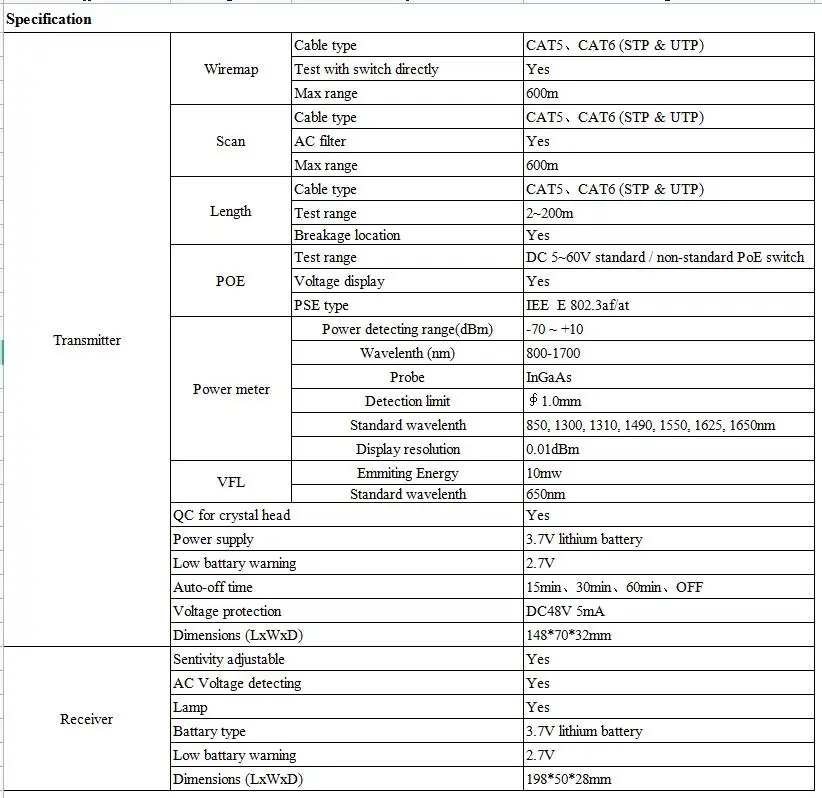

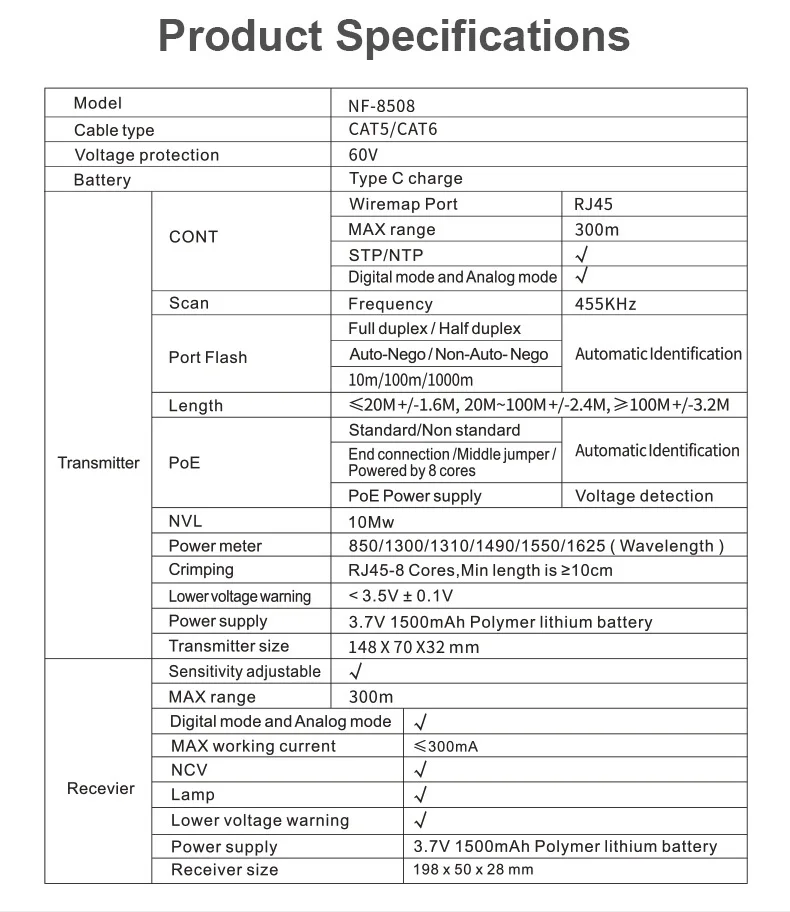

Item Specifics:
OEM / ODM : Yes
Brand Name : Noyafa
Model Number : NF-8508
Place of Origin : Shenzhen.China
Main Function : Multifunction network cable tester/Optical Power Meter& Visual Fault Locator
Port: RJ45
Interface: SC
Wavelength:850/980/1310/1490/1550/1625nm

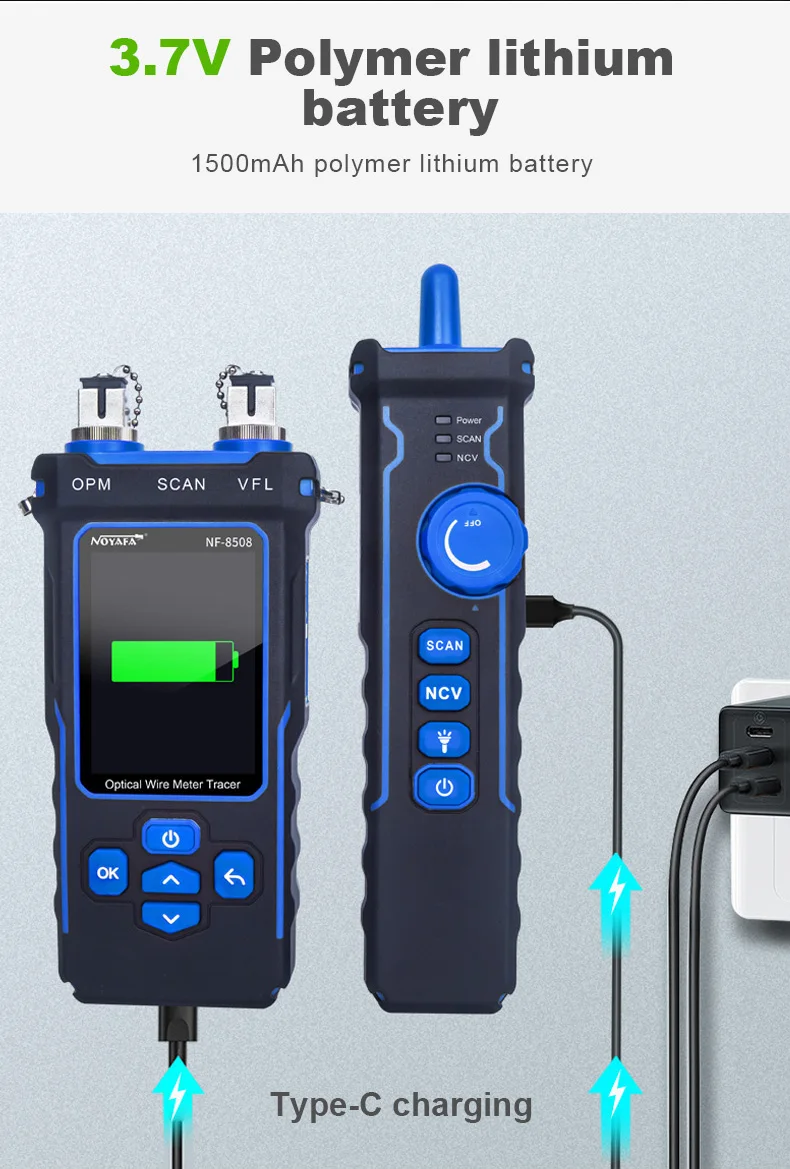

Power : 3.7V lithium battery
Warranty : 1 Year

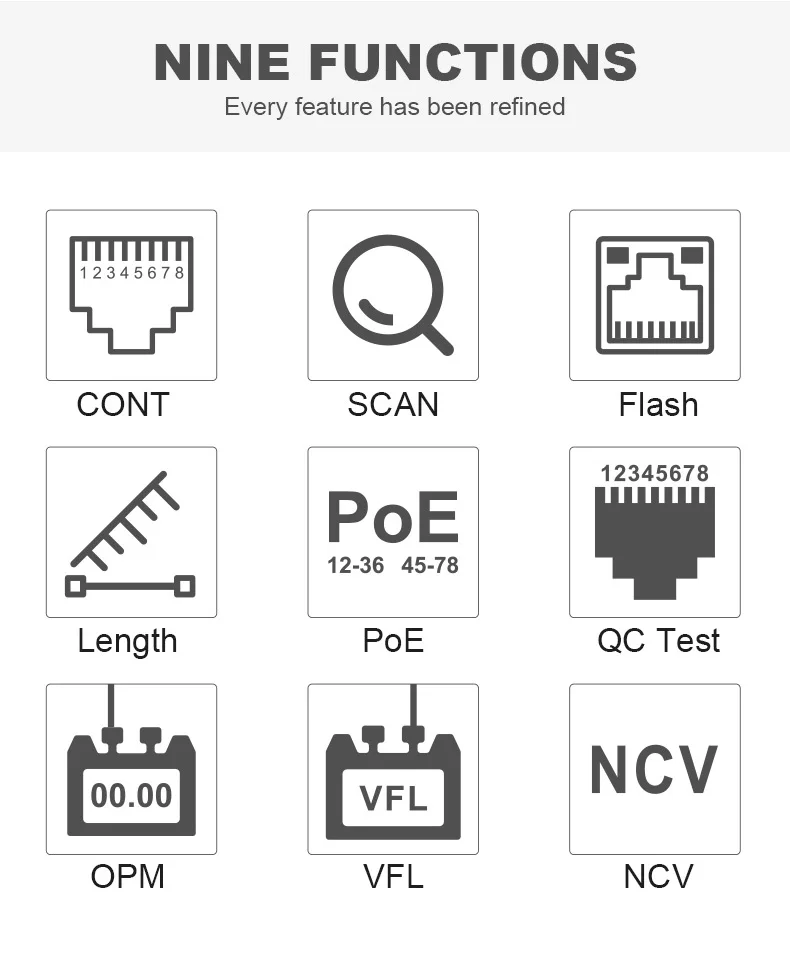

Main functions:
1. Multi-Function Network Cable Tester
1) PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)

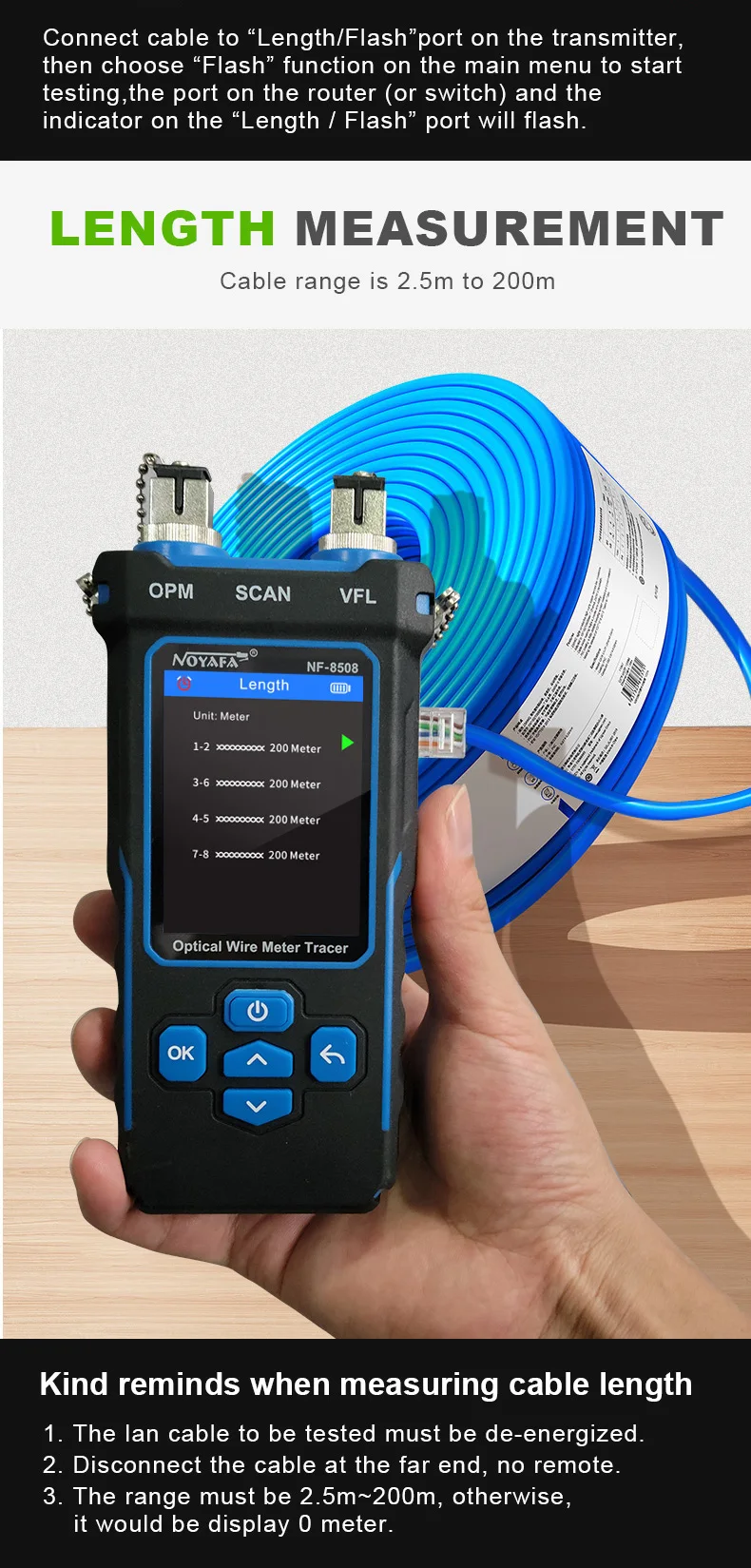

2) Measure cable length accurately , the range is 200m.

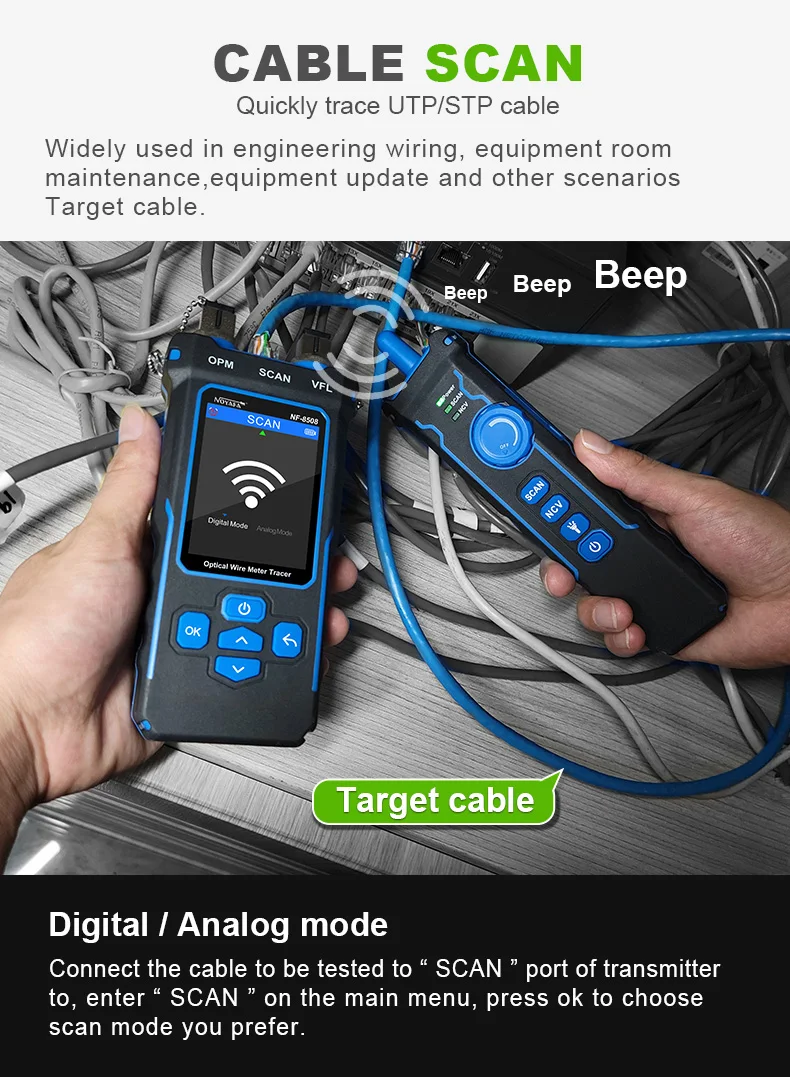

3) Two scan modes selectable: AC filter & Non AC filter

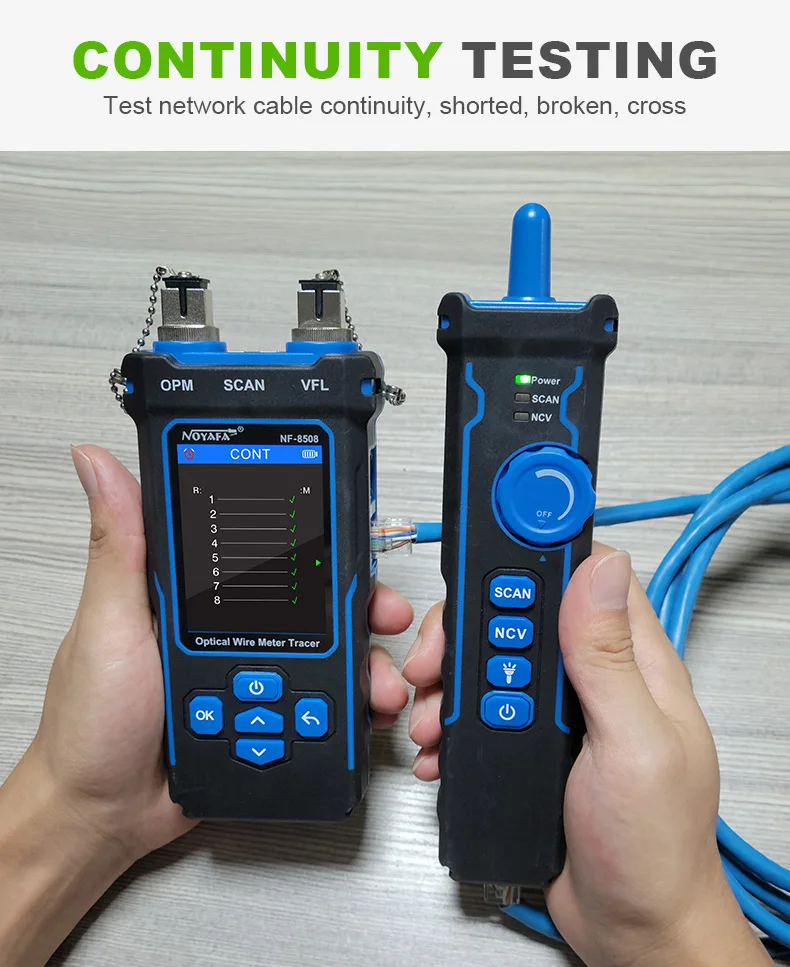

4) Test physical status for STP, UTP lan cable.

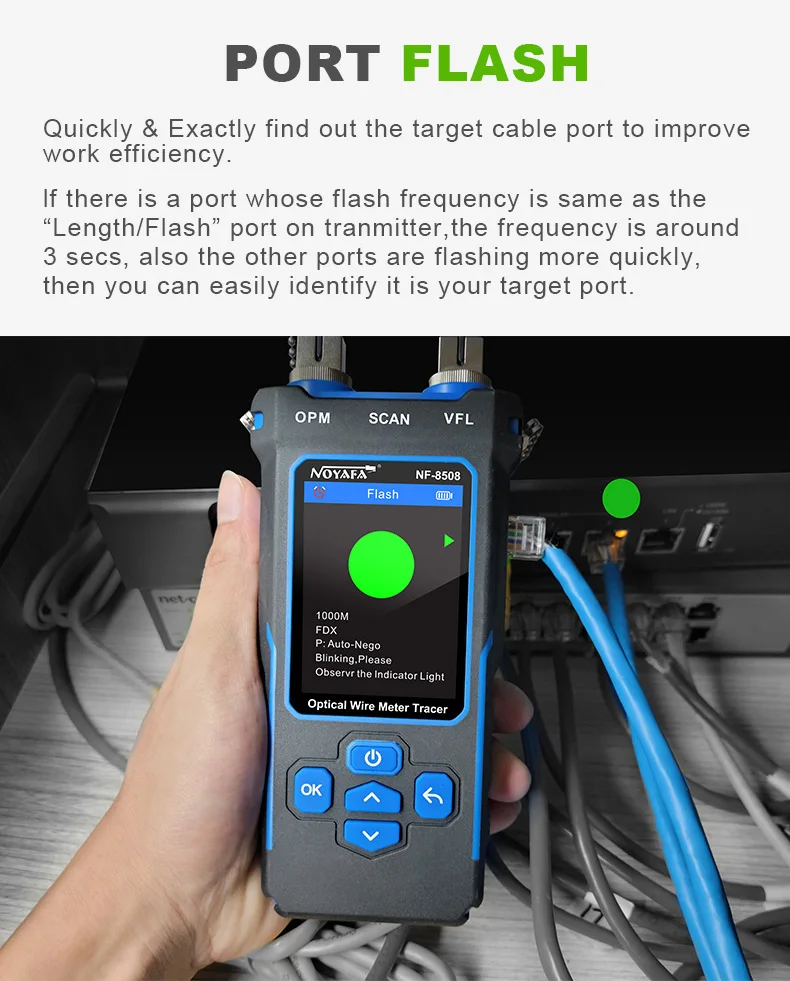

5) Hub blink for locating network port by the flashing port light on Hub / Switch.

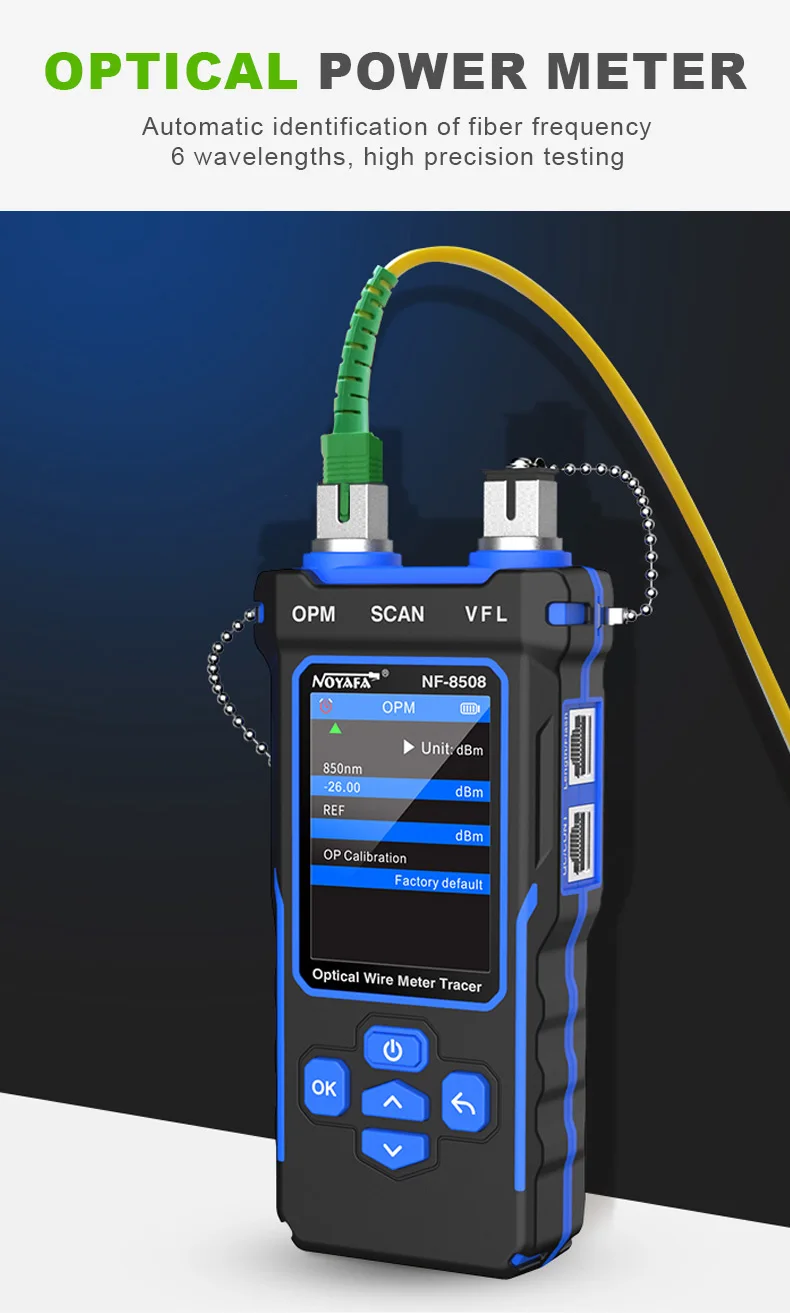

2.Optical Power Meter & Visual Fault Locator
1) Measurement of the power of optical sender (dBm and W).
2) Can measure 7 standard wavelengths,850/1300/1310/1490/1550/1625/1650,
3) Insertion loss test of optical devices

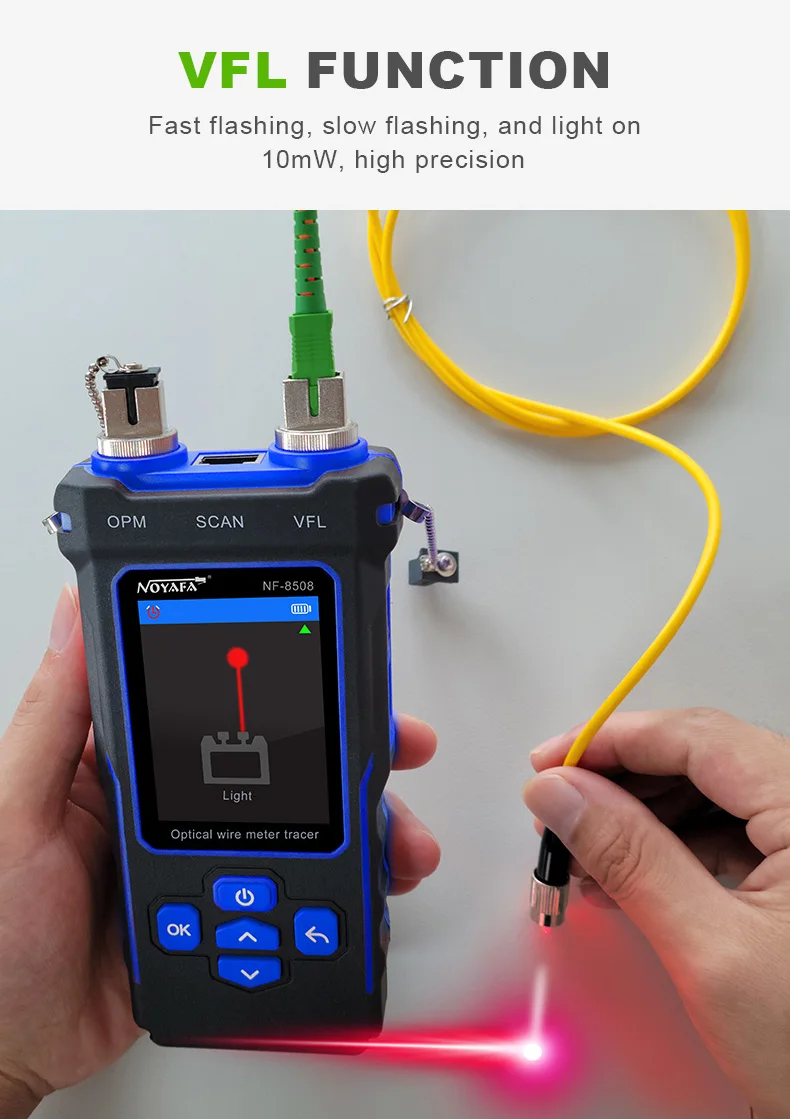

4) Locating the fault of fiber breakage, winding and so on.
Other functions:

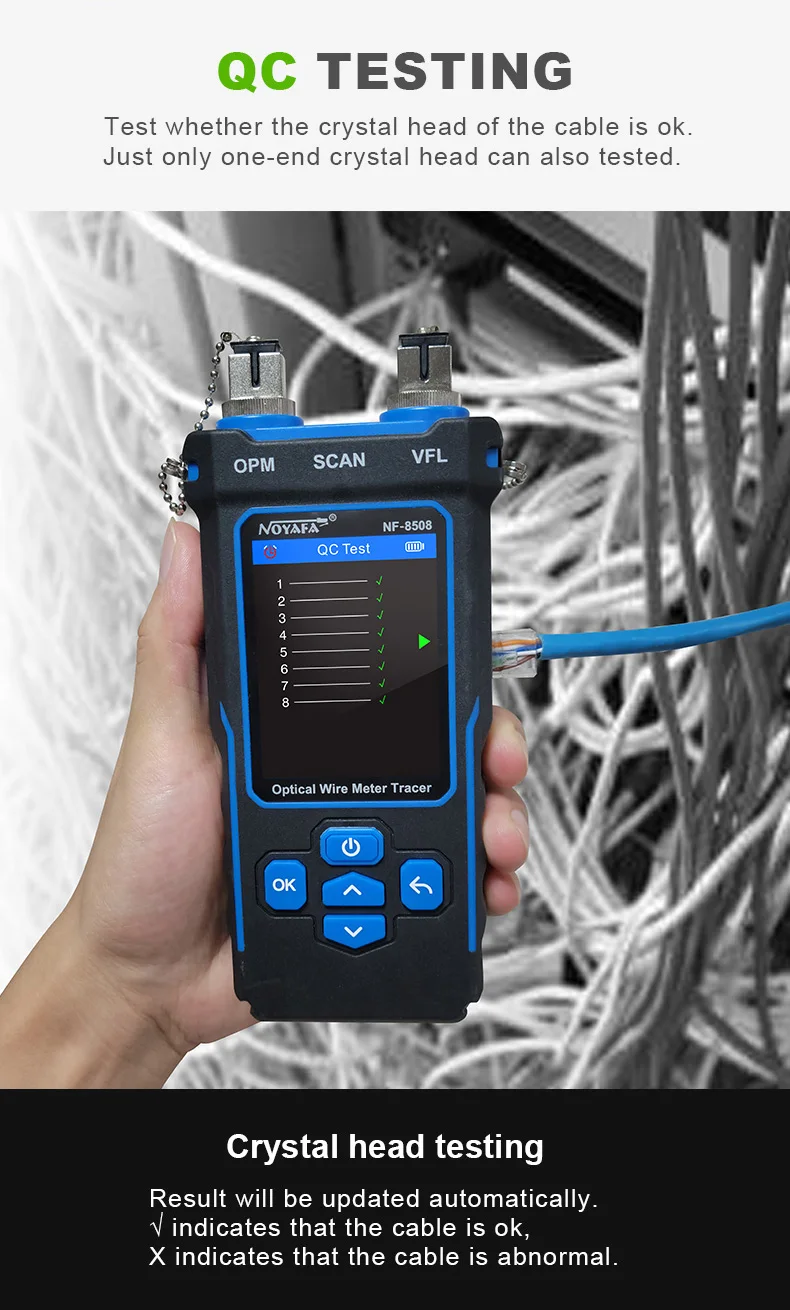

1) Quickly to check the RJ45 plug(crystal head).

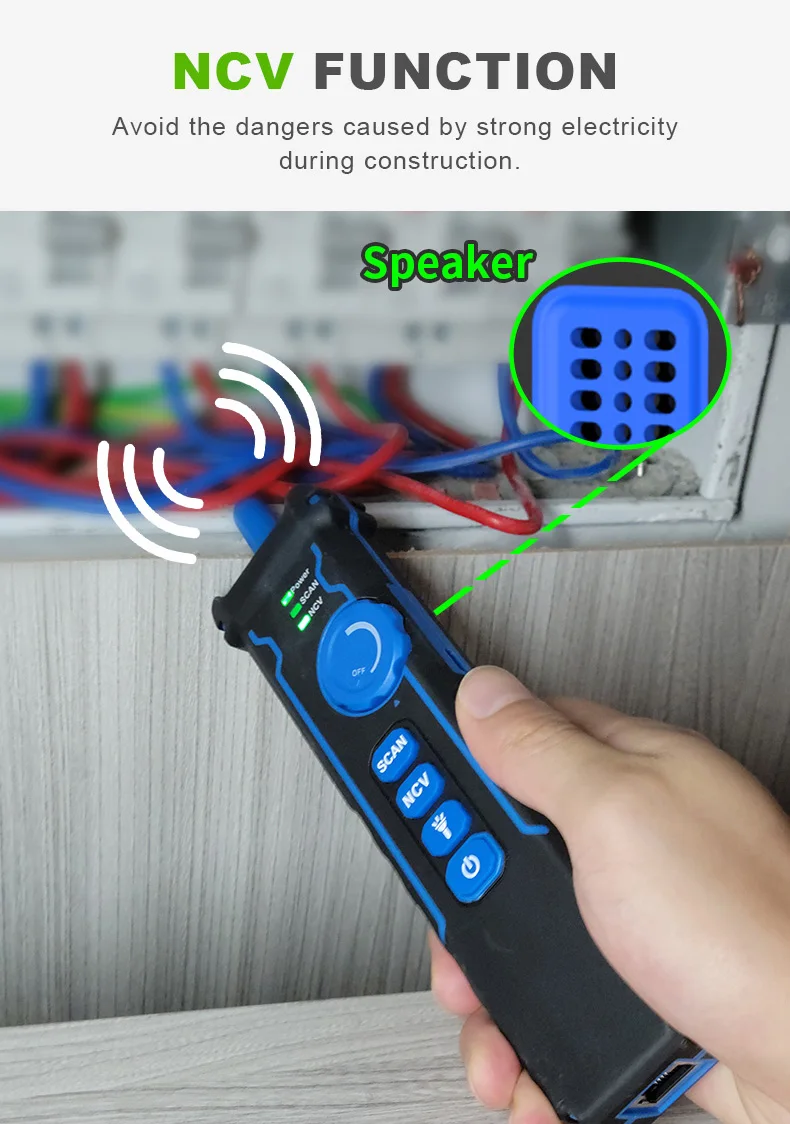

2) Detect AC voltage presence (50V-1000V).
