NFC Smart Card Reader Writer RFID Copier / Duplicator 125KHz 13.56MHz USB Programmer Key fobs Card ID IC EM UID EM4305 T5577 Tag
Description
125KHz / 13.56MHz Frequency NFC Smart Card Reader Writer
RFID Copier / RFID Reader / RFID Writer / RFID Duplicator
Product Features
1) Compliant with CCID
2) Compliant with PC/SC
3) Support IC/ID dual frequency replication
4) Driver-free, no need to download software installation
5) When connect the RFID Reader to the computer with the USB cable, then can find the software.
6) Support ID125K, 8800, 5200, 4305, 5577, 8265 card.
7) Support UID FUID CUID UFUID IC semi-encrypted card, Most of IC full encryption card.
8) Has USB full speed interface
9) Two-color LED light prompt (red light is standby, green is working)
10) Built-in buzzer "beep" sound reminder
1) Compliant with CCID
2) Compliant with PC/SC
3) Support IC/ID dual frequency replication
4) Driver-free, no need to download software installation
5) When connect the RFID Reader to the computer with the USB cable, then can find the software.
6) Support ID125K, 8800, 5200, 4305, 5577, 8265 card.
7) Support UID FUID CUID UFUID IC semi-encrypted card, Most of IC full encryption card.
8) Has USB full speed interface
9) Two-color LED light prompt (red light is standby, green is working)
10) Built-in buzzer "beep" sound reminder
Product Parameters:

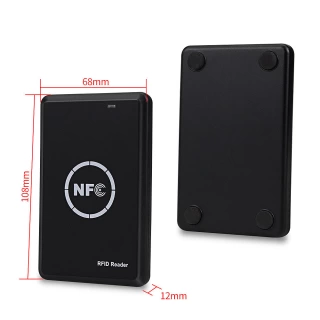

Dimensions: 108 (L) X 68 (W) X 12 mm (H)
Interface: USB full speed
Working Voltage: 5 V DC
Working current: 200mA
Standby current: 50mA
Normal current: 100mA
Working frequency: 125KHz / 13.56 MHz

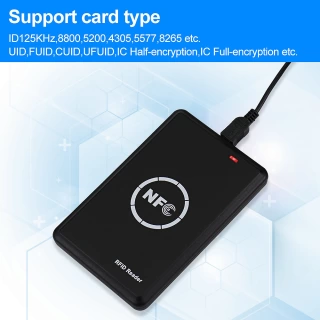

Smart card support: for 125KHz ID type: EM4100, TK4100, 8800, 5200, EM4305, T5577, 8265 etc.
For 13.56MHz IC type: UID FUID CUID UFUID, Most of IC Half-encryption, IC Full-encryption etc.
Supported operating systems: Support Windows computer. Not support Linux, Mac.
How to use the card reader?

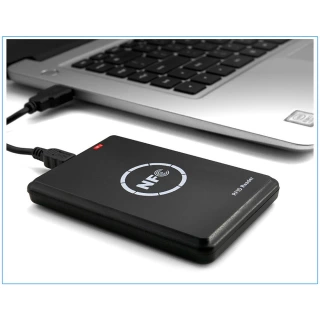

1) Connect the device to your computer with the USB cable.
2) You can view and open the software on your computer.
Read and write ordinary 125KHz RFID card
1. Place the card on the card reader and press "Read" on the software to scan the card.
2. The software will scan and display the card number
3. Place a writable T5577 (125KHz writable chip) on the card reader and press "Write" on the software.
Read and write 13.56MHz IC, IC half encryption card, IC full encryption card
1. Place the card on the card reader and press "Card number" or "Start decoding" on the software.
2. Place a writable UID (13.56MHz writable chip) on the card reader and press "Write Card" on the software.
Product Details
Light weight body, Mini Design
ABS flame-retardant material casing, small and light,
the interior is controlled by high-quality microchip, and the card reading effect is fast.

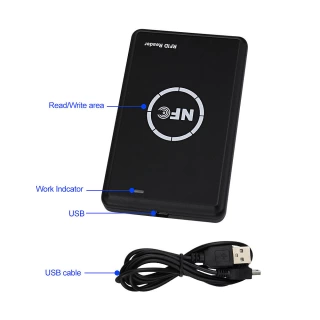

LED indicator light / buzzer
The LED indicator light is red under standby mode, and it's green under the card reading status.
Built-in buzzer, very convenient for effective prompts.
Anti-slip mat at the bottom
The bottom is made of a sponge mat, and the inside of the sponge is a removable screw.
USB full speed and efficient
1.2m long USB transmission cable, fast response. No need to install the driver, quickly read the card number

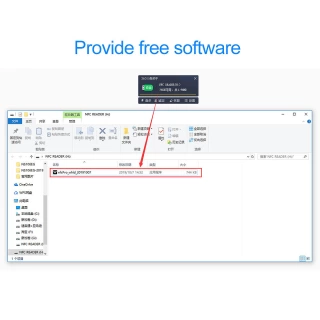

Built-in mobile disk with software, plug and play
Connect the RFID reader to your computer with the USB cable, then can find the software
Hot Question:
1) Where can i download the software?
Answer: You can download the software via this link: http://www.nsccn.com/download/soft/nfc/nfcPro_wbw.exe

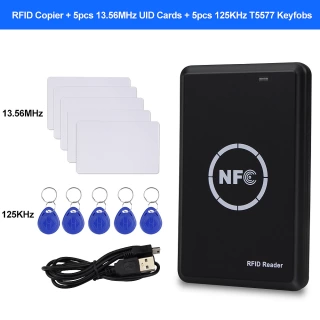

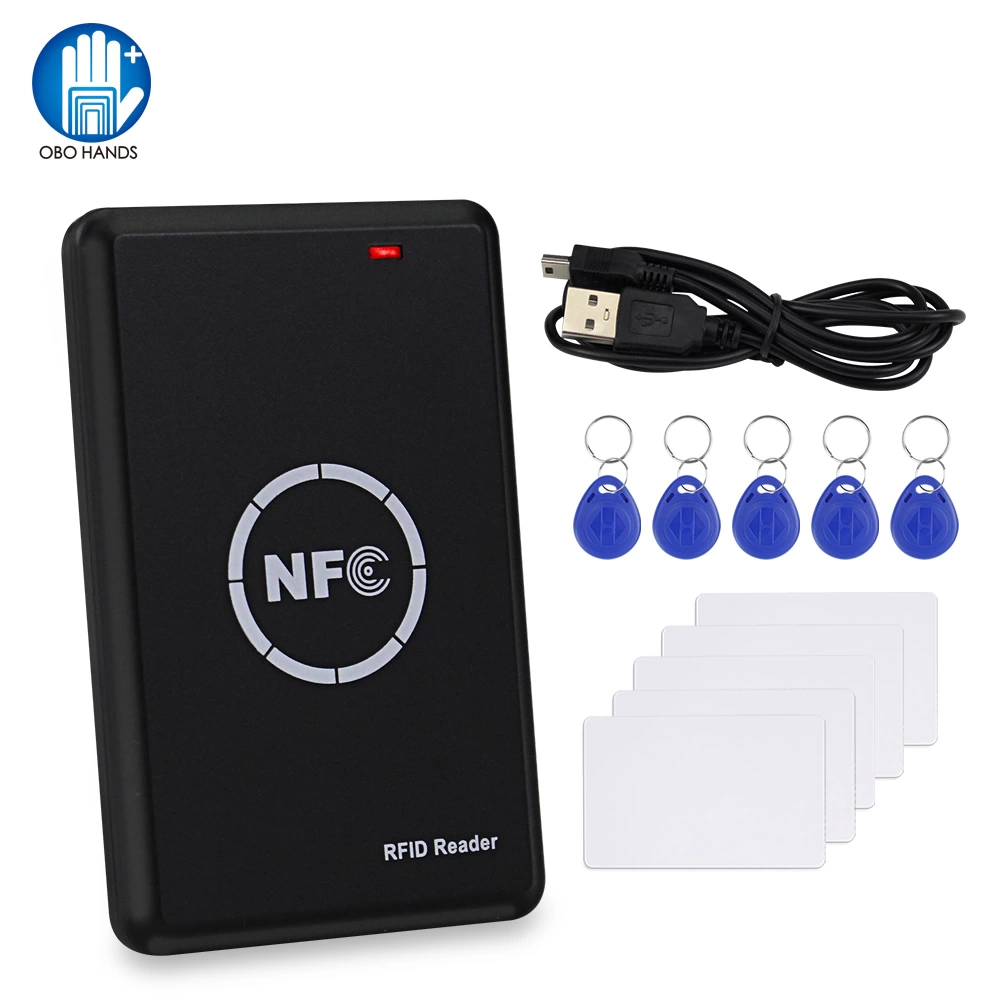

2) Which chip inside in the 5pcs blue keyfobs and 5pcs white cards?
Answer: If you buy the RFID copier + 5pcs UID cards + 5pcs T5577 keyfobs. The 5pcs UID cards is working with 13.56MHz frequency, used to copy the mi-fare 1k card. The 5pcs T5577 keyfobs is working with 125KHz frequency, used to copy the EM4100, TK4100 cards. They are different type chip.
3) The software support Windows ONLY. Not support MAC, Linux.
4) Not Support bank cards, credit cards, HID cards.
