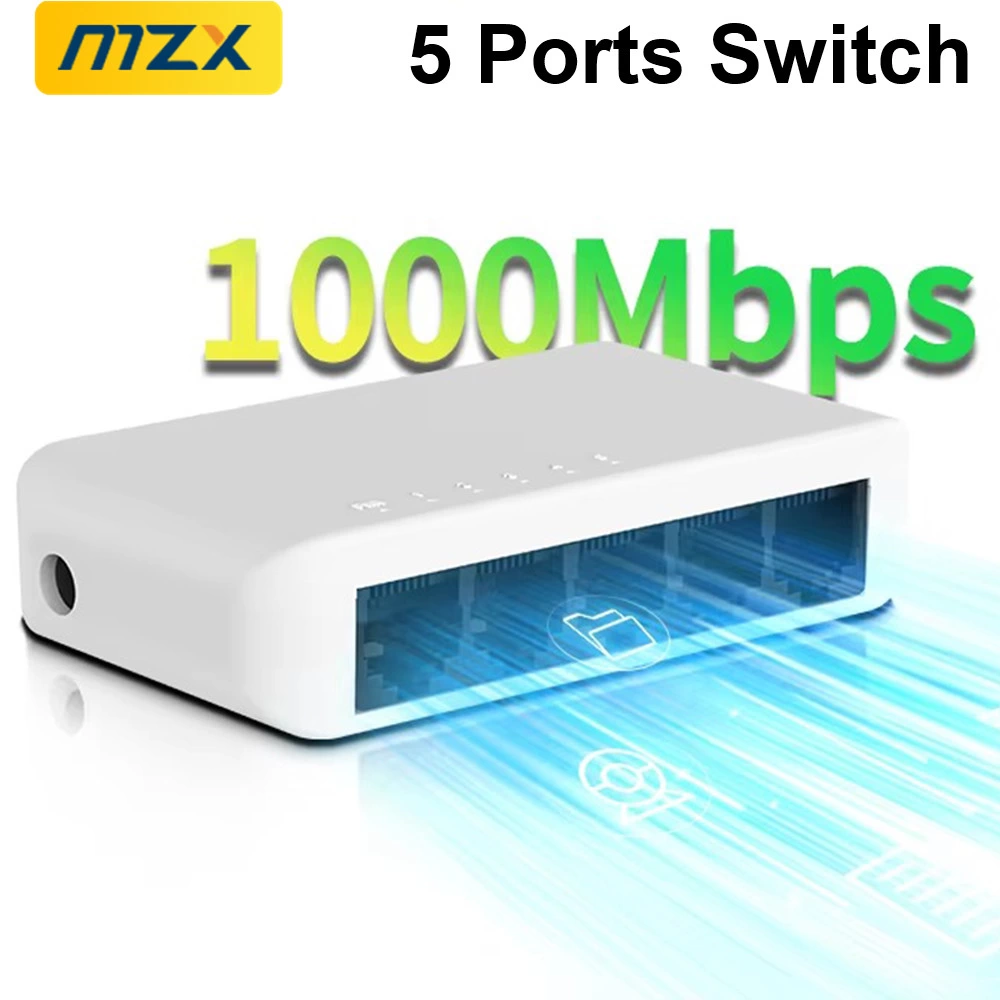

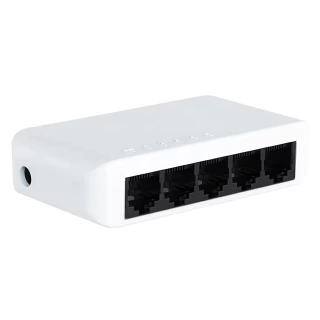

1000Mbps Gigabit Network Switch 5 Ports Switcher RJ45 Hub Mini Ethernet 1000M Stable Smart Networking Internet Injector Adapter
Description
Product Description

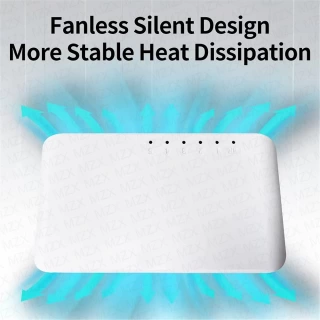

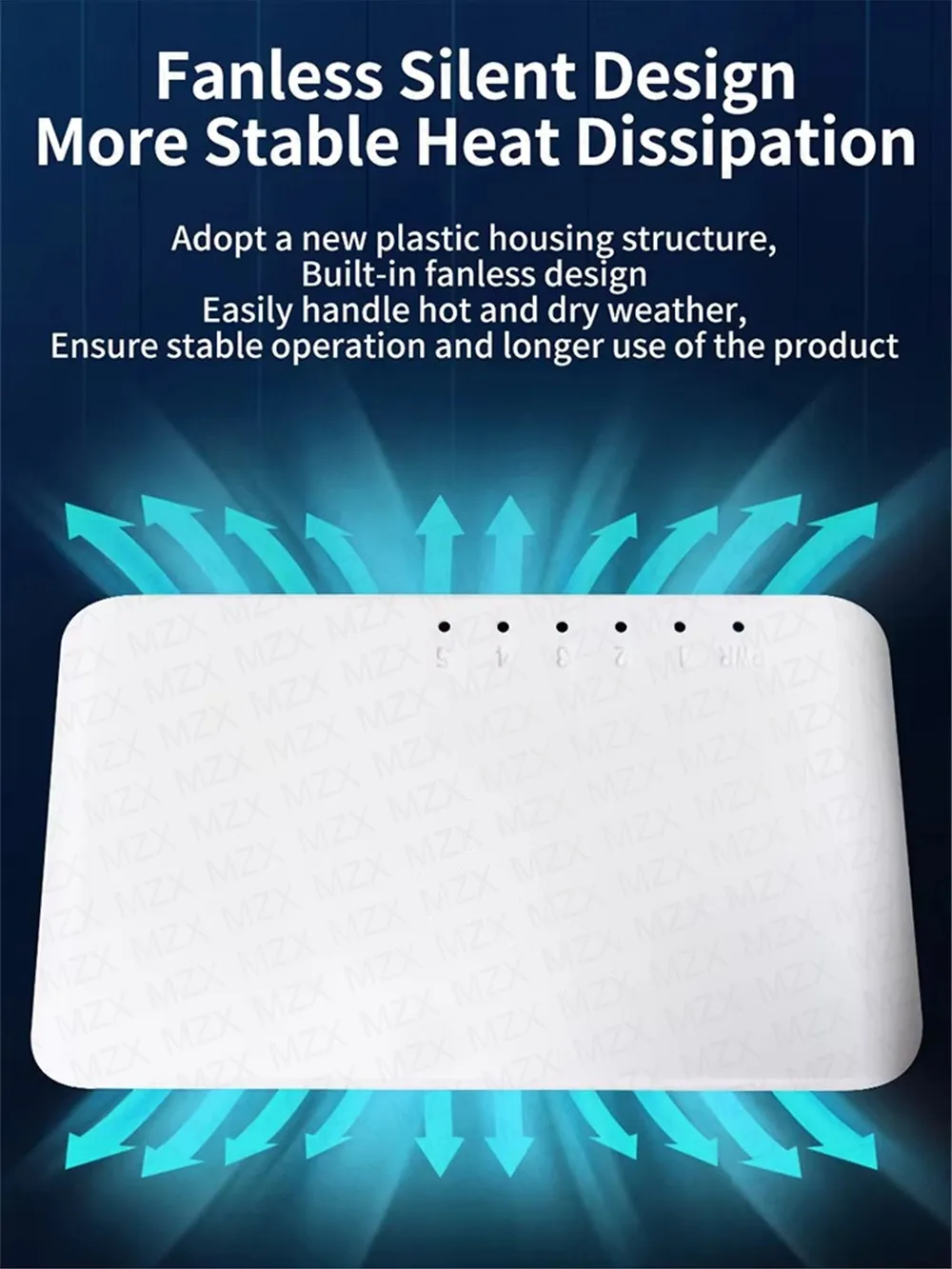

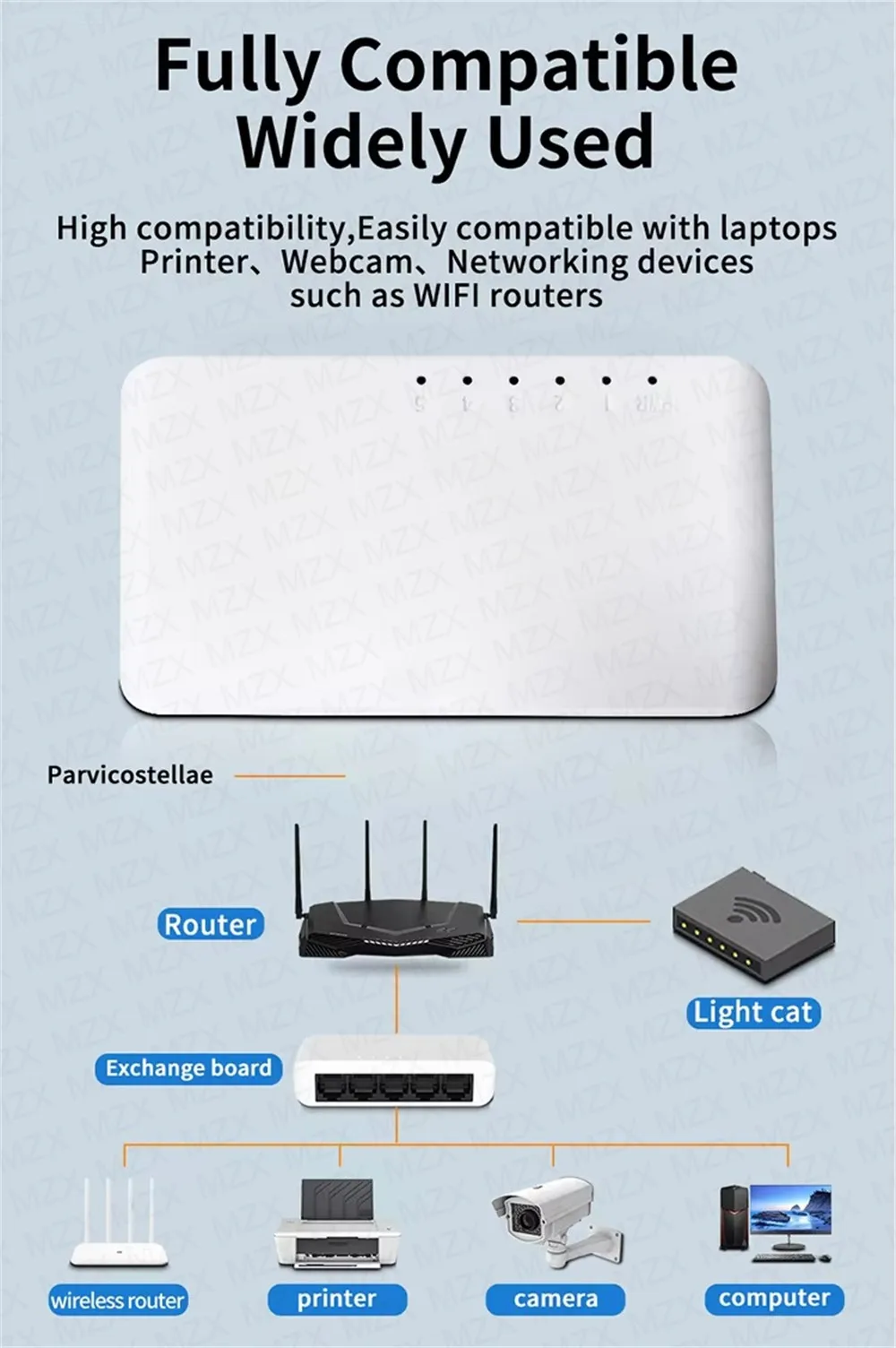

The 5-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 5 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
[Main Features]

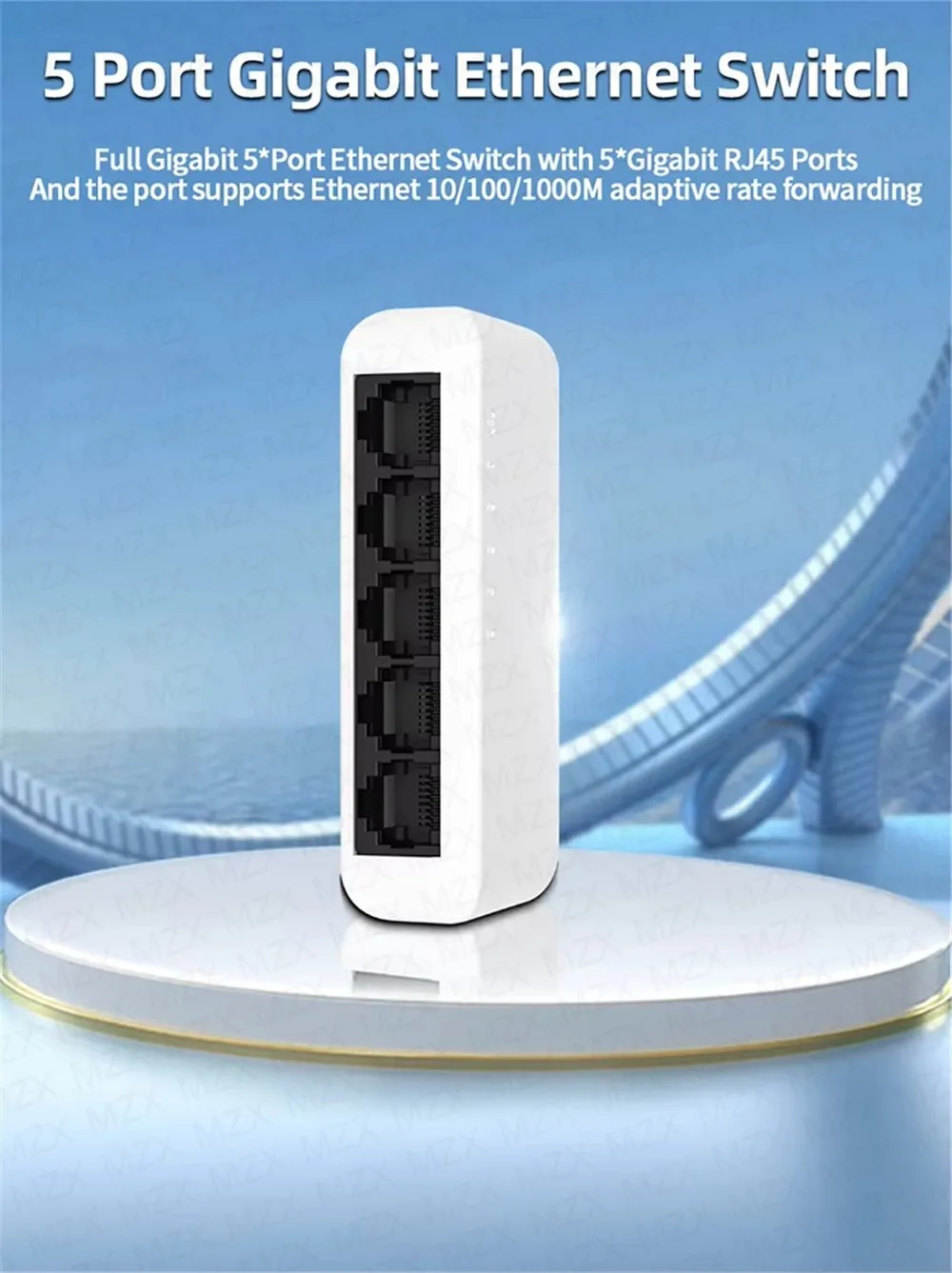

1. 5*Gigabit RJ45 Ports
2. Apply to IEEE802.3,IEEE802.3u,IEEE802.3ab standard
3. Ethernet ports support 10/100/1000M adaptive

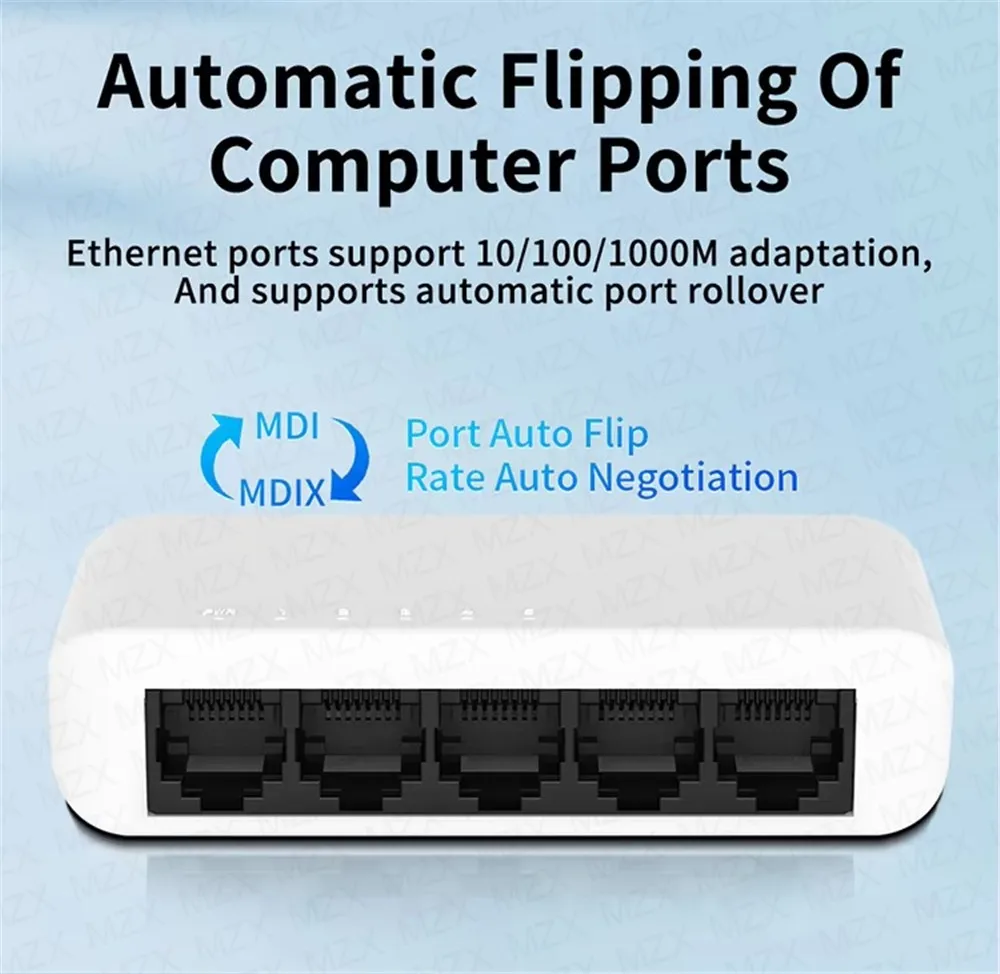

4. Support Auto MDI/MDIX
5. Panel indicators to monitor working status and help fault analysis
6. Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
Power | DC 5V 1A |
Ethernet | 5*Gigabit RJ45 Ports |

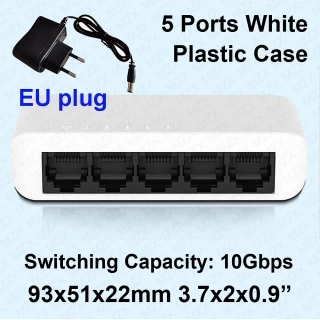

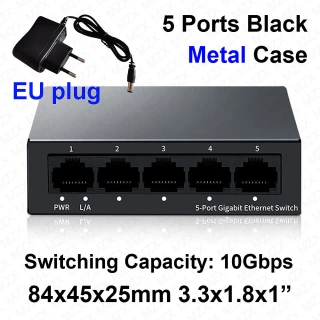

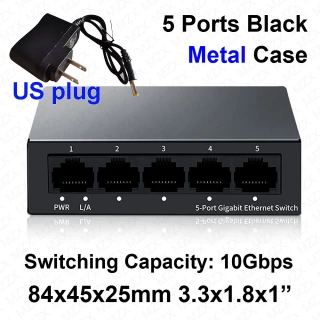

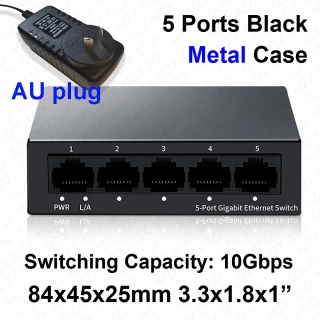

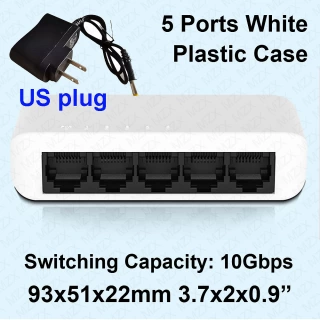

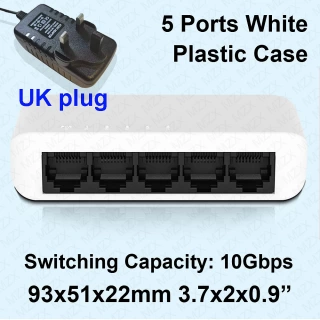

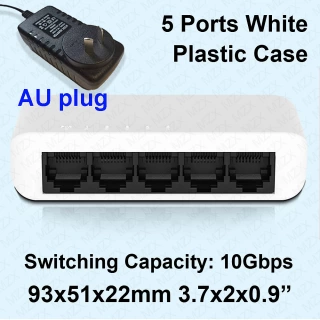

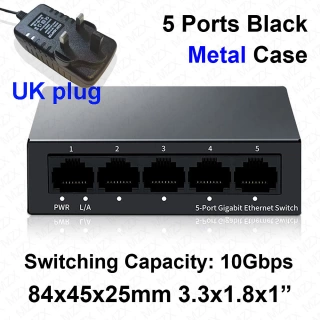

Material | White is Plastic, Black is Metal |
Switching Capacity | 10Gbps |
Throughput | 7.44Mpps |
Package cache | 3Mbit |
MAC Address | 2K |
Jumbo Frame | 15Kbytes |
Transfer Mode | Store and forward |
MTBF | 100000 Hours |
Network Protocol | IEEE802.3 (10Base-T) |

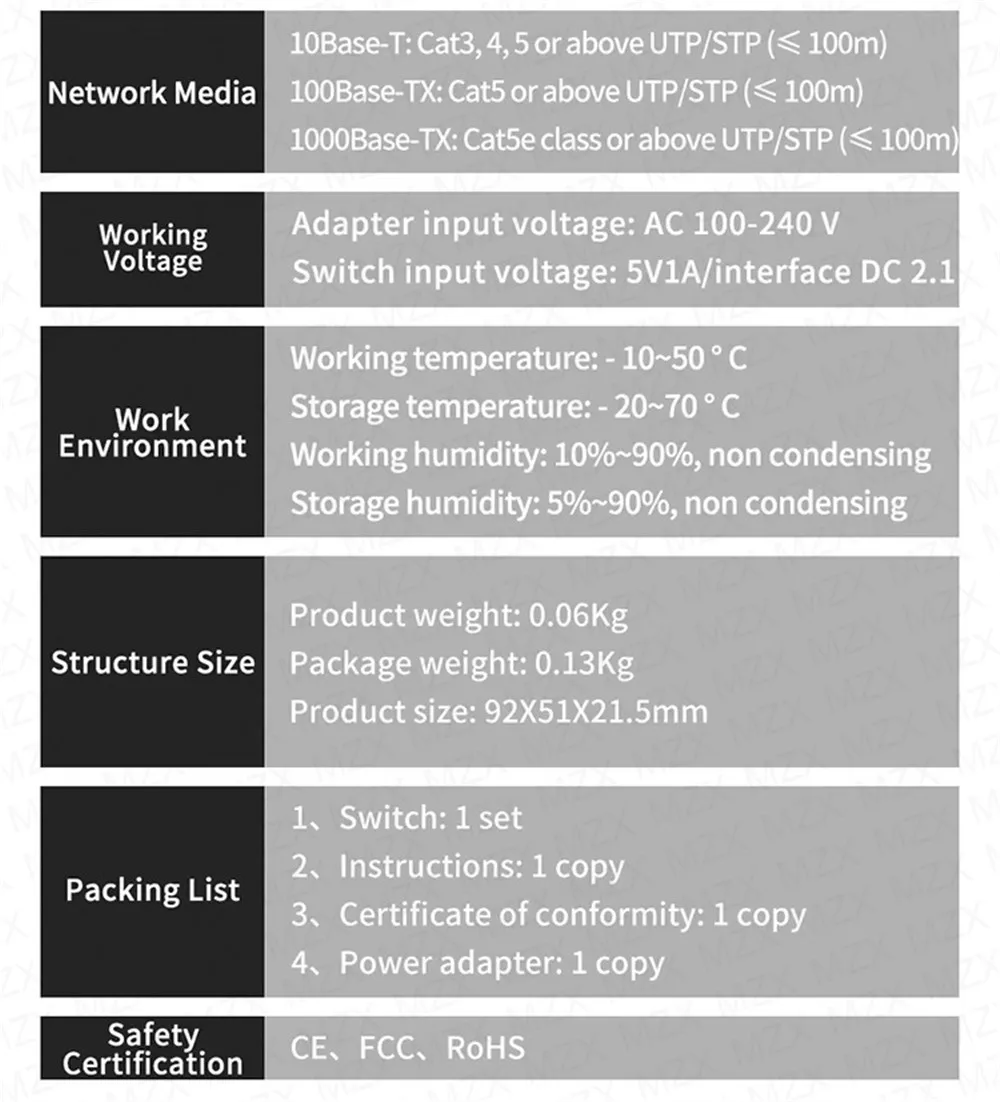

Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m) |
Working Environment | Working Temperature:-10~50°C |
LED Indicators | PWR(Power indicator),Link(Network Link) |
PWR | On: power on |
Link | On: 10/100/1000M link connection is normal |
Operating Voltage | Power interface: DC2.1 |
Total power | <5W |
Packing list | 1. Switch: 1PC |
Detailed Images

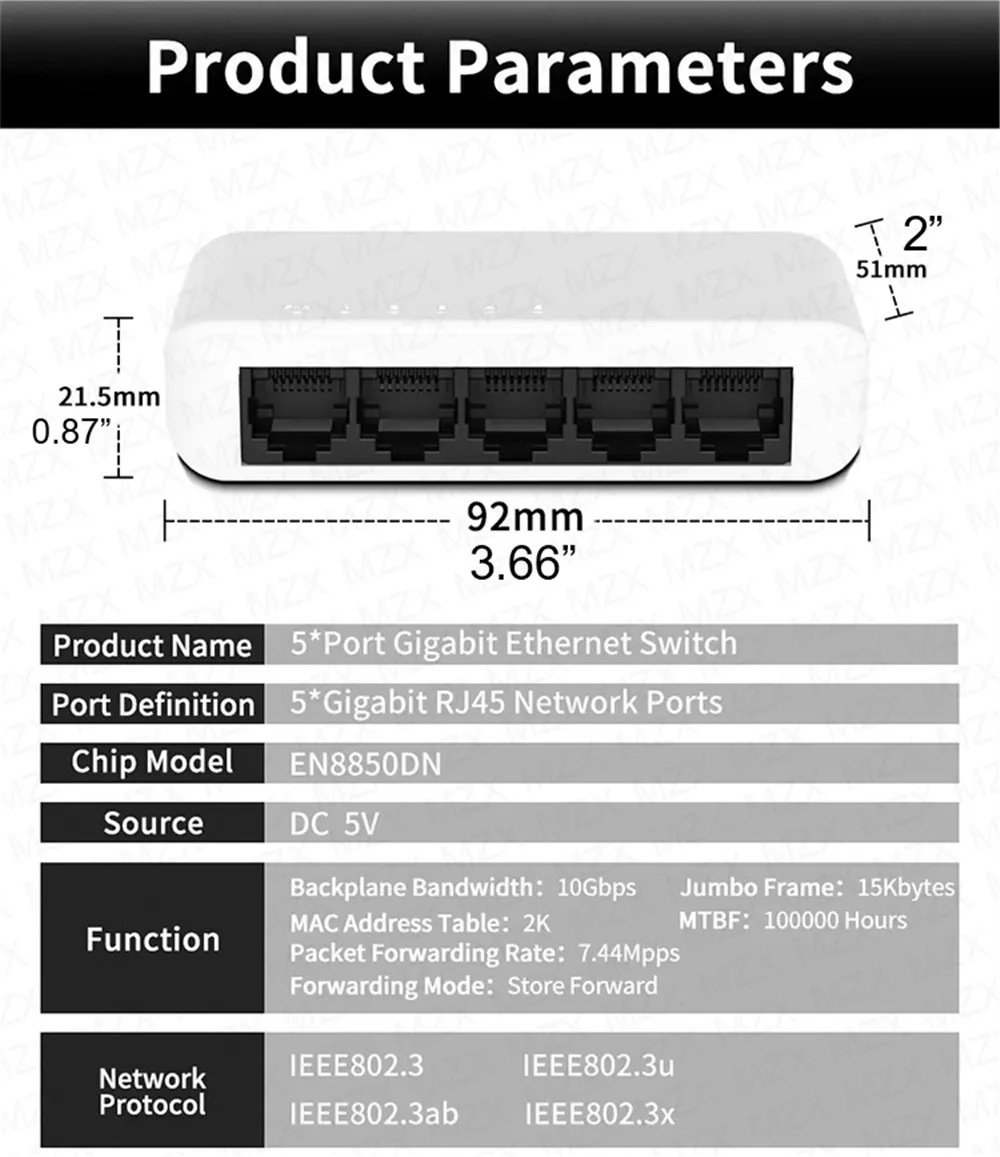

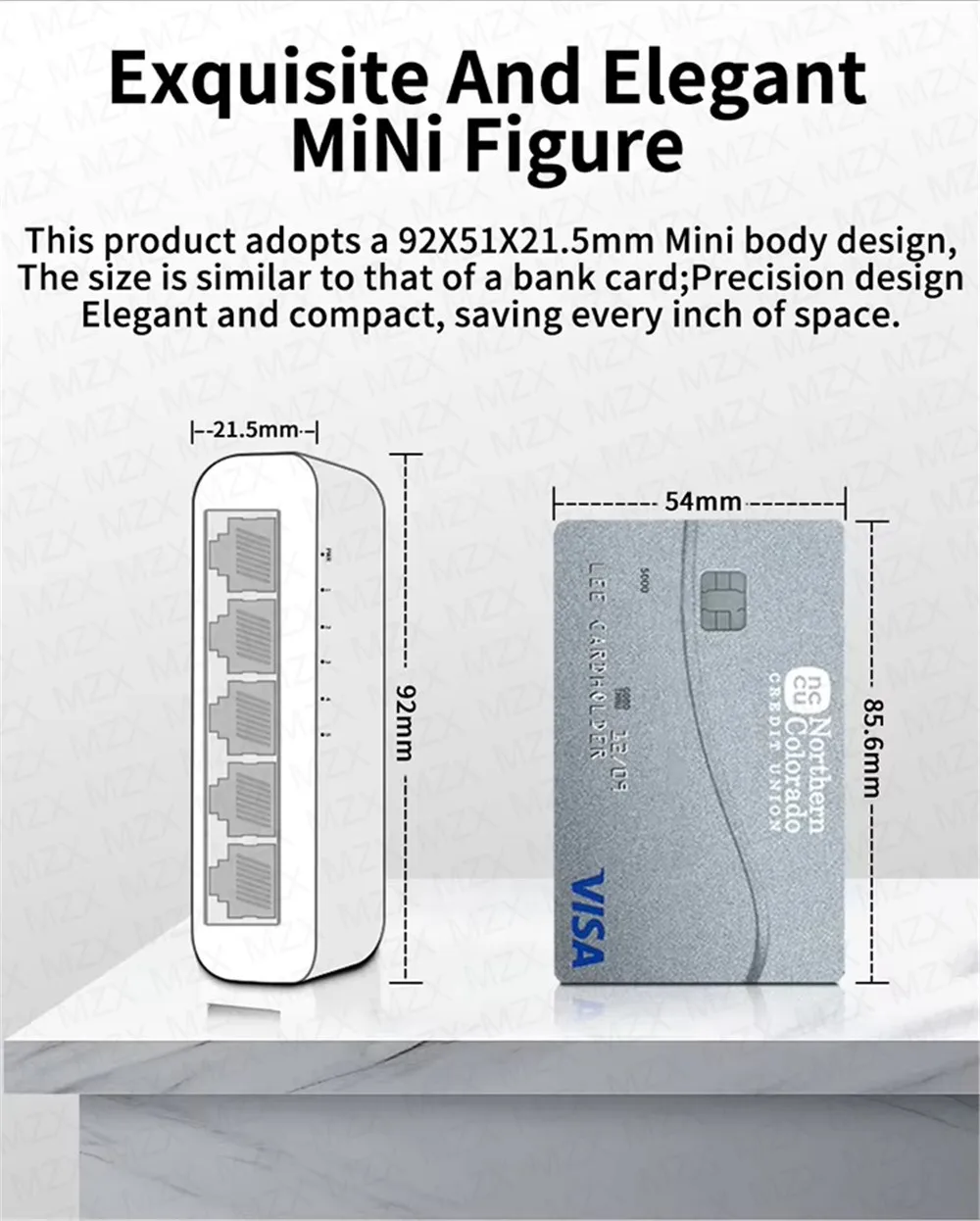

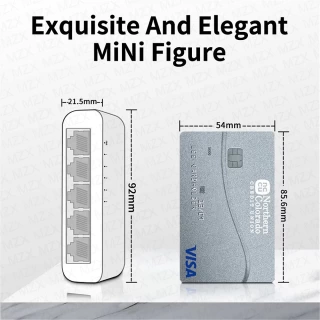

Please note: The size is measured by hand, may be a little error compared with the actual size. Please refer to the actual product for exact size.
Gigabit Switch 5 Ports 1000Mbps Network Switcher RJ45 Hub Mini Ethernet 1000M Stable Smart Networking Internet Injector Adapter
